230SM220MA Split Spherical Roller Bearing Size 220x360x92 Mm

Product Categories
Shaanxi Fortune Industries Co.ltd
Contact Now

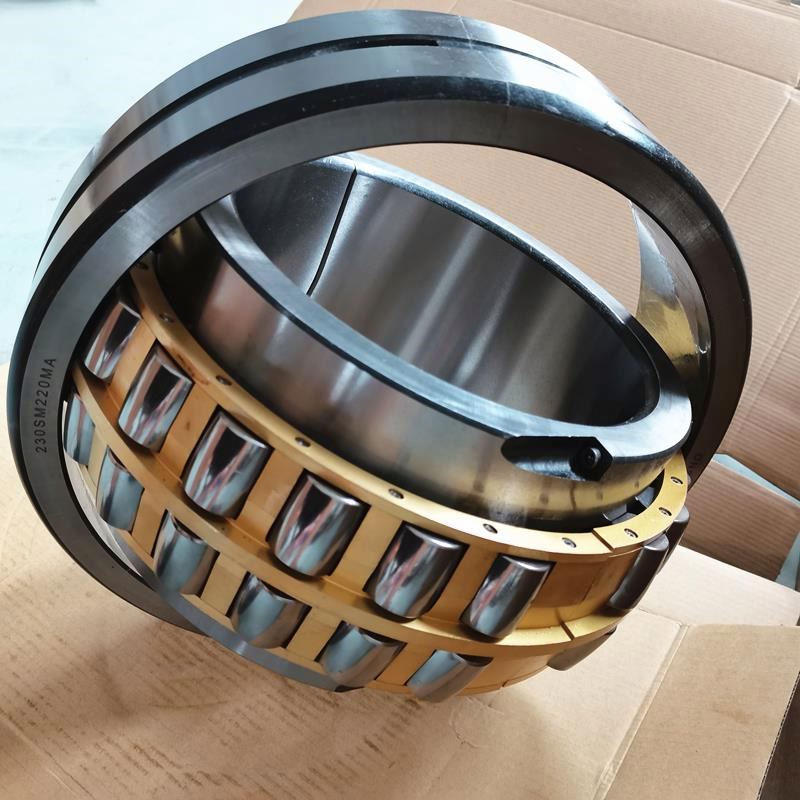

230SM220MA Split Spherical Roller Bearing Size 220x360x92 Mm

Brand Name : SFT

Model Number : 230SM220MA

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50000PCS/MONTH

Delivery Time : 20-45DAYS

Packaging Details : carton,pallet

Cage : Steel Cage

Model Numbe : 230SM220-MA

Material : Chrome Steel GCr15

Z1,Z2,Z3,Z4 : CA/CC/CAK/E/MB/K30

Structure : Spherical roller

Number of row : Double Row,Single Row

Contact Now

Split spherical roller bearing

Product Description of Split spherical roller bearing:

Split Spherical Roller Bearing 230SM220MA provides rapid bearing replacement at difficult to access locations

Split spherical roller bearings 230SM220MA are principally used where the replacement of unsplit Spherical roller bearings would require costly additional work, involving the removal of gears or couplings, the dismounting of drives or the dismantling of shaft power trains. The use of split spherical roller bearings reduces the downtime of machinery and plant.

Split spherical roller bearings 230SM220MA are essentially used on shafts supported at several points and locations that are difficult to access. Typical areas of application include conveying equipment, materials processing plant, ventilation plant, rolling mills, ships and paper machinery

230SM220MA Split Spherical Roller Bearing Size 220x360x92 Mm

Part No. Mass(kg) Dimensions (mm)
d D C B r (min.)
230SM150-MA 17.4 150 260 67 112 2,1
231SM150-MA 28 150 280 88 133 2,1
222SM150-TVPA 35.5 150 310 86 128 4
230SM160-MA 24.4 160 280 74 123 2,1
231SM160-MA 32.7 160 300 96 140 2,1
222SM160-TVPA 37.6 160 320 86 131 4
230SM170-MA 23.6 170 290 75 120 2,1
231SM170-MA 40.6 170 320 104 142 2,1
222SM170-TVPA 43.6 170 340 92 142 4
230SM180-MA 30 180 310 82 134 2,1
231SM180-MA 56.4 180 340 112 160 3
222SM180-MA 52.7 180 360 98 154 4
230SM200-MA 45 200 340 90 136 3
231SM200-MA 61.8 200 370 120 175 4
222SM200-MA 69.6 200 400 108 162 4
230SM220-MA 42.6 220 360 92 156 3
231SM220-MA 86 220 400 128 190 4
222SM220-MA 90.9 220 440 120 170 4
230SM240-MA 57.4 240 400 104 160 4
231SM240-MA 118 240 440 144 210 4
222SM240-MA 136 240 480 130 200 5
230SM260-MA 63.6 260 420 106 170 4
231SM260-MA 109 260 460 146 190 5
222SM260-MA 147 260 500 130 200 5
230SM280-MA 96 280 460 118 176 4
231SM280-MA 160 280 500 160 218 5
222SM280-MA 157 280 540 140 200 5
230SM300-MA 108 300 480 121 186 4
231SM300-MA 184 300 540 176 225 5
222SM300-MA 214 300 580 150 212 5

230SM220MA Split Spherical Roller Bearing Size 220x360x92 Mm230SM220MA Split Spherical Roller Bearing Size 220x360x92 Mm230SM220MA Split Spherical Roller Bearing Size 220x360x92 Mm

Applications of Split spherical roller bearing:

• Bucket wheel excavators and reclaimers
• Winches and sheaves
• Worm conveyors
• Bucket conveyors and belt conveyors
• Mixing and stirring plant
• Mills and crushers
• Sintering plant, drum type kilns
• Fans and ventilators
• Dust extraction plant
• Drive and transmission shafts
