NK Series NK0612 Radial Needle Roller Bearing Without Inner Ring

Brand Name : SFT

Model Number : NK0612

Place of Origin : CHINA

MOQ : 500

Price : 1-50USD/PC

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 5000PCS

Delivery Time : 45 days

Packaging Details : neutral

Bore Size : 5 - 68 mm

Outer diameter : 16-90 mm

Thickness : 15.88mm

Material : Gcr15

Cage : Steel Cage

Type : needle

Contact Now

NK Series NK0612 Radial Needle Roller Bearing without inner ring

Product Description

NK Series NK0612 Radial Needle Roller Bearing Without Inner Ring

Needle roller bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified roller/raceway profile prevents stress peaks to extend bearing service life. We supplies needle roller bearings in many different designs, series and in a wide range of sizes, which make them appropriate for a wide variety of operating conditions and applications.

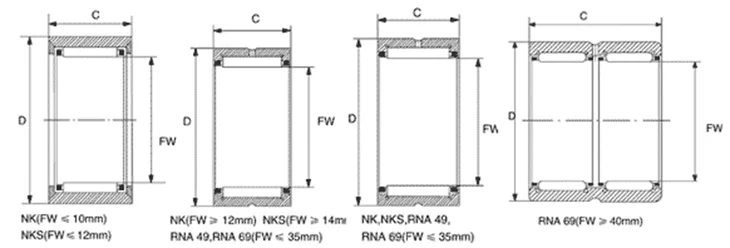

Technical parameter

Shaft Diameter	Bearing Designation		Mass Approx	Boundary Dimensions			Basic Load Rating		Limiting Speed
Shaft Diameter	Current Code	Original Code	Mass Approx	Fw	D	C	Dynamic	Static	Oil
mm	Current Code	Original Code	g	mm			N		rpm
5	NK5/10TN		2.9	5	10	10	2100	1400	36780
	NK05/08			5	10	8
	NK05/10TN-OH			5	10	12	2350	1920	39000
	NK05/12TN		3.7	5	10	12	3000	2650	39000
6	NK06/10			6	12	10	2600	2200	37000
	NK06/10TN			6	12	10	2600	2200	37000
	NK06/12TN		5.7	6	12	12	3350	3150	37000
	RNA6X13X8TN			6	13	8
7	NK07/10		6.9	7	14	10	2850	2650	34000
7	NK07/12		8.2	7	14	12	3650	3600	34000
7.8	RNA7.8169			7.8	16	9
8	NK8/12TN		8.3	8	15	12	3950	4100	32000
	NK08/12		8.7	8	15	12	3950	4100	32000
	NK08/16		12	8	15	16	5100	5800	32000
	NK08/16TN			8	15	16	5100	5800	32000
	RNA8X19X9			8	19	9
	RN8X14X8			8	14	8
	RNA496			8	15	10
	RNA8X15X10TN			8	15	10
9	NK09/12		10.3	9	16	12
10	NK10/12TN	462409K	10	10	17	12	4750	5300	29000
		5624097	16.6	10	17	15	4860	7100	29000
	NK10/10			10	17	10
	NK10/12			10	17	12
	NK10/16			10	17	16	6200	7800	29000
	NK10/16TN			10	17	16	6200	7800	29000
	NKS10			10	19	13	5800	6000	29000
12	NK12/12TN	644097	11.8	12	19	12	6000	6400	27000
